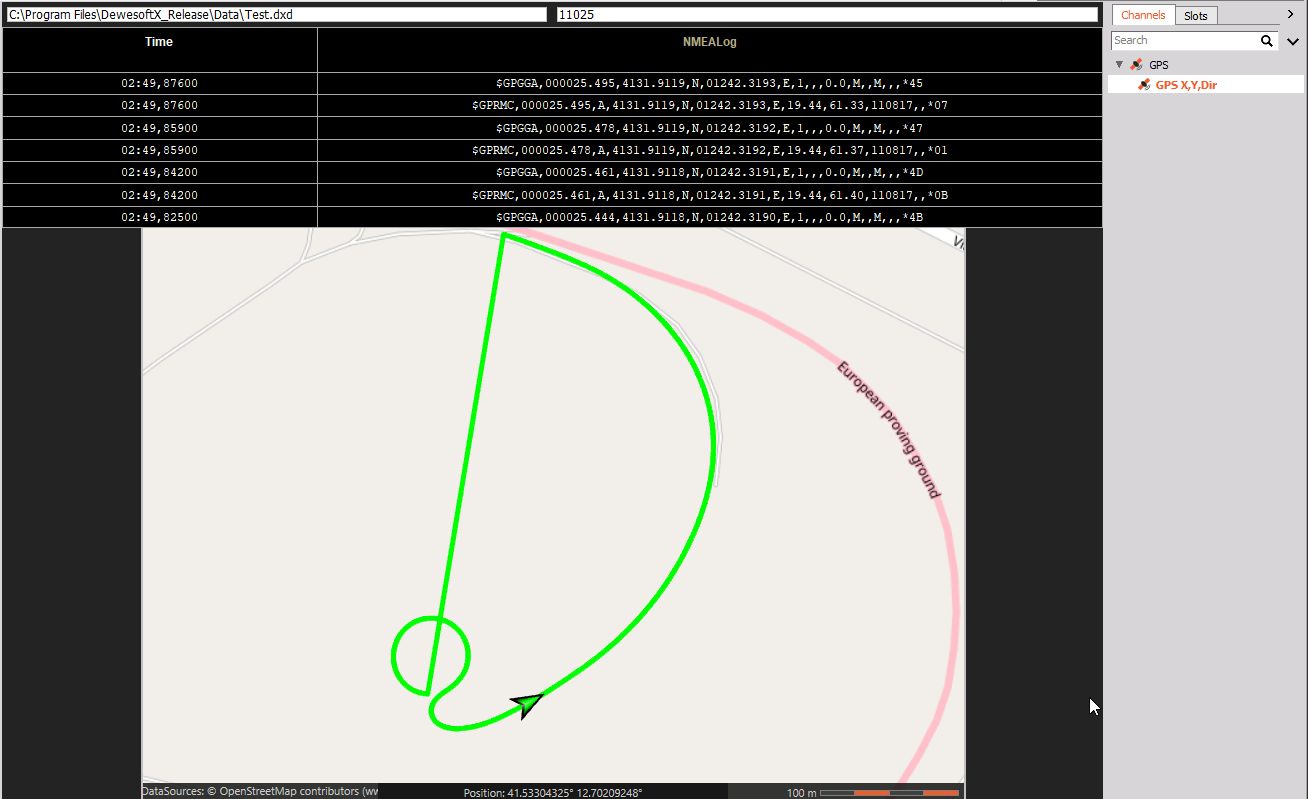

NMEA messages which are available in DewesoftX software as standard channels from the module and can be easily exported.
1. Exporting the NMEA channel
Please check and make sure that when storing GPS data that the NMEA channel is selected to be stored:
When exporting the NMEA channel from the data file we recommend the options selected in the picture below (export only raw data):

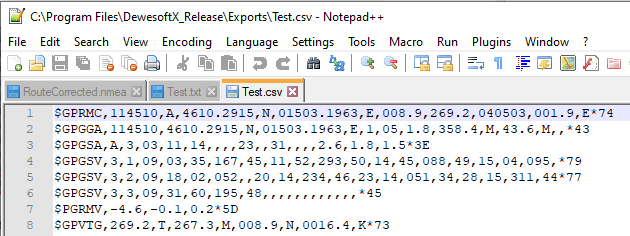

It is important that there are no headers or other additional information in the exported file:
2. Enabling/Using the NMEA file in GPS replay:
Adding GPS replay from the Settings menu:
In the device, settings click on the three dots to select the replay file (.txt or .csv or .nmea):
NOTE: Select the "Wrap replay" box in order for to NMEA signal will be replayed in a loop.
If everything is correct the GPS channels should have values:
The replay can be used in the measurement screen:
For example, a tabular display is used to look at the specific values.
