In this article are the shock and vibration specifications for IOLITE R8 and R8r:


1. IOLITE-R8:



 Test profile
Functional performance test profile
Frequency [Hz]
PSD value [g*g/Hz]
PSD value [g*g/Hz]
5
 -
0,125
10
0,75
0,25
150
0,015
0,005
Acceleration
RMS (g)
3,436
2,208
Velocity
(m/s)
0,27
0,26
Displacement
(mm peak-peak)
6,5
10,3




Duration Details:

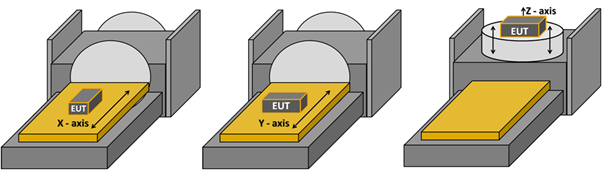

Test profile: Testing in all three perpendicular axis 4 hours each.
EUT
Test level
Result
IOLITE R8
4 hours in each direction
PASS, in-house test


Functional performance test profile: Testing in all three perpendicular axis 20 min each.
EUT
Test level
Result
IOLITE R8
20min
PASS, in-house test


2. IOLITE-R8r:


R8r was tested with the IOLITE 6xSTG module.

Vibration test


Shake test. 2 hours on each axis.

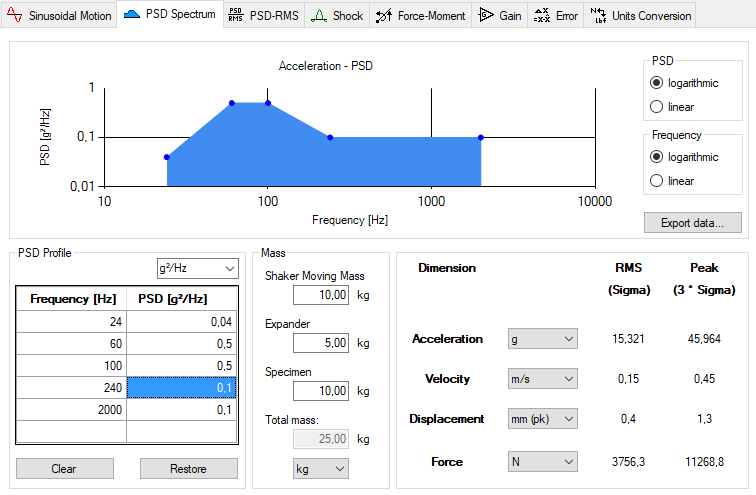

VIBRATION PROFILE
Frequency (Hz)
PSD (g2/Hz)
24
0,04
60
0,5
100
0,5
240
0,1
2000
0,1





DUT
Test level
Result
IOLITE-R8r with IOLITE 6xSTG
15,3 Grms
PASS in-house test.
2 hours on each axis.

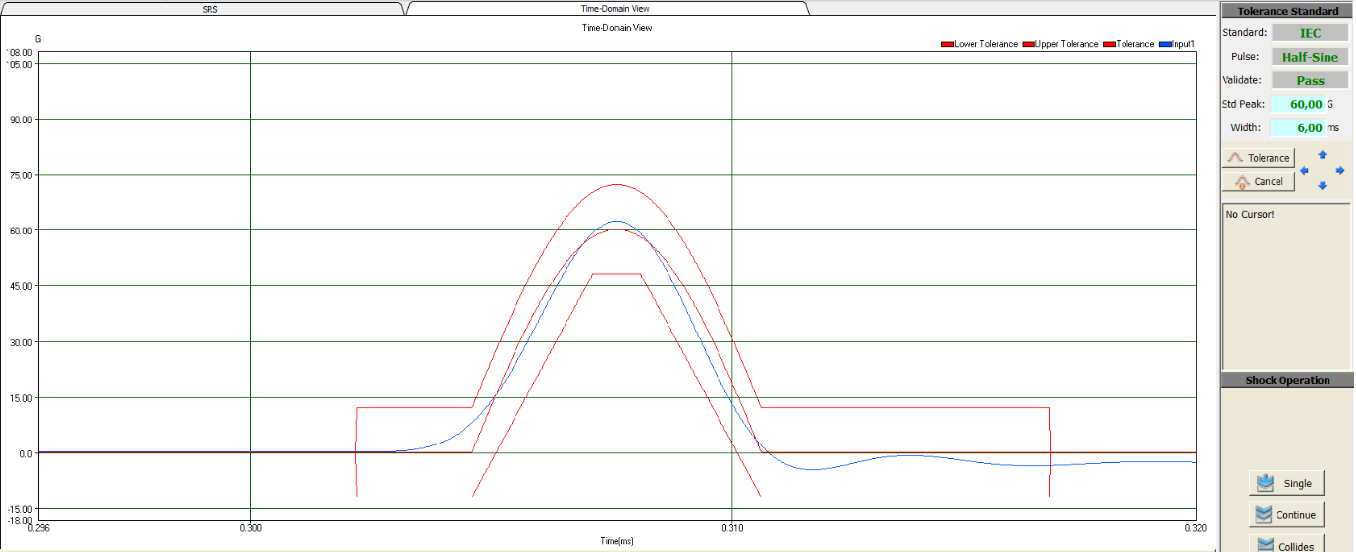

Shock test 60 g, 6 ms


  • Ambient temperature: 25 ⁰C
  • Orientation: ± X, Y, Z axis
  • Pulse shape: half-sine
  • Peak acceleration: 60 g
  • Pulse duration: 6 ms
  • Number of shocks: 50 in all six directions (-X, +X, -Y, +Y, -Z and +Z)
  • Test done on: Shock



DUT
Test level
Result
IOLITE-R8r  with IOLITE 6xSTG
60 g, 6 ms, half-sine
PASS in-house test.
50 in all six directions (-X, +X, -Y, +Y, -Z and +Z)
